Description

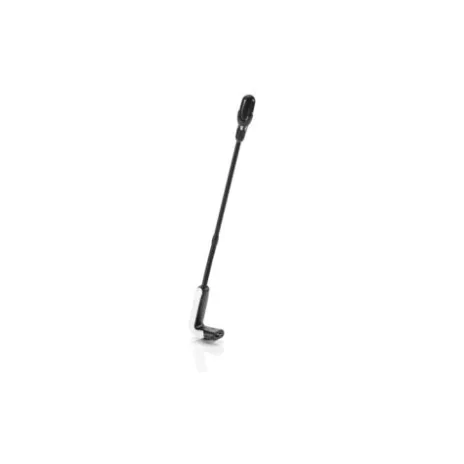

DCNM-MICS Microphone with short stem
Commercial Type No.: DCNM-MICS
Product No.: F.01U.288.448

- Uni‑directional microphone on adjustable stem
- Built‑in plop and windshield
- Low susceptible for mobile phones
- For acoustical challenging rooms
- For locations where people want to speak standing upright

Details :
Power supply : 5 VDC
Power consumption : 0.1 W
Bandwidth : 125 Hz – 15 kHz according IEC 60914
Dynamic range : >100 dB
Nominal input : 85 dB SPL
Maximum input : 115 dB SPL
Equivalent noise : 15 dB SPL
Mounting : Plug and fasten into DICENTIS device and DICENTIS Wireless Devices.
Length: DCNM‑MICS (without connector) DCNM‑MICL(without connector) : 310 mm (12.21 in) 480 mm (19.90 in)
Connector : 77.15 x 60.47 mm(3.40 x 2.38 in)
Weight: DCNM‑MICS DCNM‑MICL : 91 g (0.20 lb) 108 g (0.24 lb)
Color: DCNM‑MICS / DCNM‑MICL : Traffic black RAL 9017Pearl light grey RAL 9022
Operating temperature : 0 ºC to +45 ºC(32 ºF to +113 ºF)
Storage and transport temperature : -20 ºC to +70 ºC(-4 ºF to +158 ºF)
Relative humidity : < 95 %, > 5%
